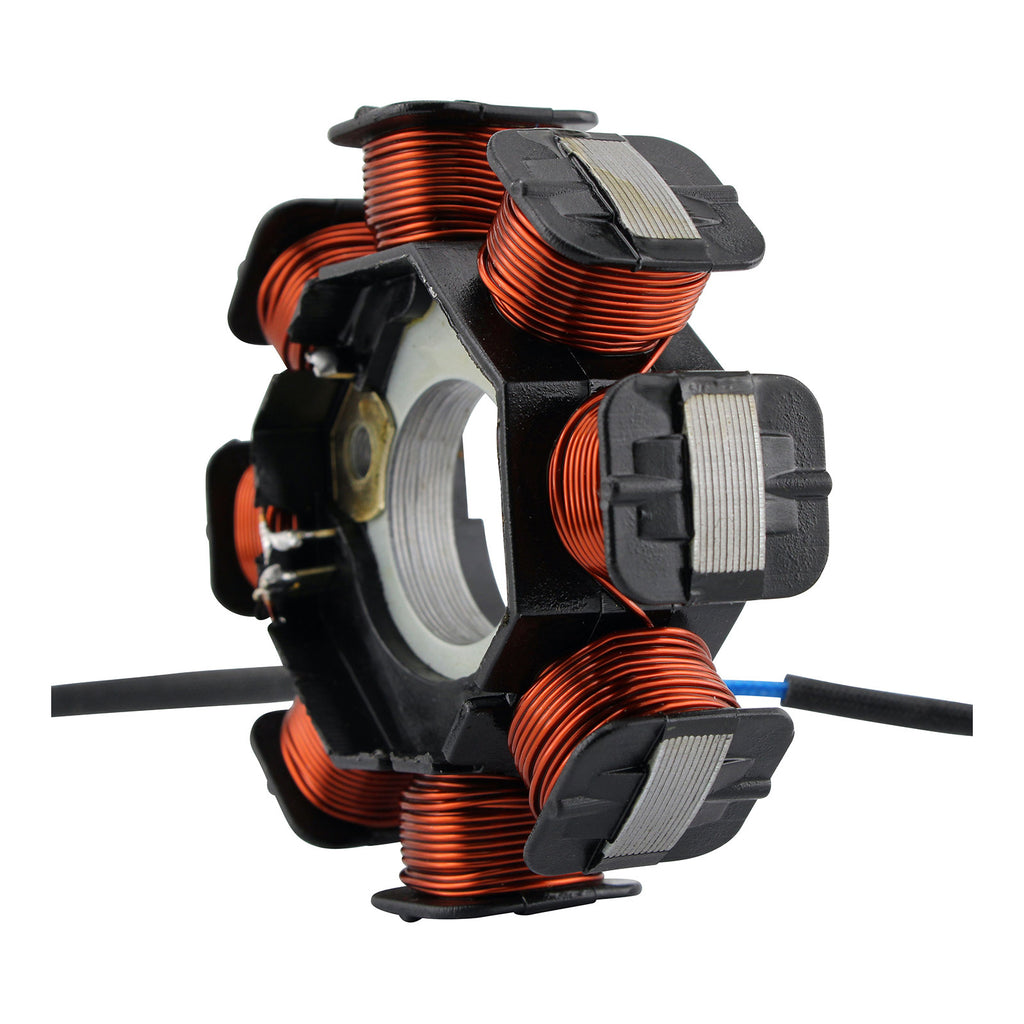

GENERATOR STATOR KAW KLX110 10-21 (RMS010-107078)

RMSTATORSKU: RMS010107078
No reviews

Title: GENERATOR STATOR KAW KLX110 10-21 (RMS010-107078)
Price:
Sale price$379.90
Stock:
Sold out

Description

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 150 mm
  • Length of pickup coil's wire to grommet: 120 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 1
  • Number of holes: 2
  • Number of poles: 8

Wire to wire resistance:

  • Alternator: White to Ground = 1.2 ohms +-20%
  • Pickup: Blue/yellow to Ground = 118 ohms +-20%
